XENARC CP-1000
In-Dash 1-DIN Car PC

DISCONTINUED - Replaced by MP-FL12

This In-Dash, In-Vehicle Personal Computer opens up the world of in-vehicle entertainment!  Install our in-car computing software and couple this In-Dash multimedia PC with our In-Dash Touchscreen computer Monitor  or any of our mobile TFT LCD Monitors with VGA input and optional Touch Screen, you have yourself a system that is capable of GPS navigation, MP3 playback, in-car theater, in-car gaming, and in-car office.  This PC even has two PCMCIA sockets good for wireless communication such as GPRS wireless Internet or WiFi.  Our Carputer (Car Computer) is a full-featured PC that fits conventional car stereo one-DIN slot in the vehicle which gives you a clean installation and factory look.






   CP-1000 (Carputer System 1000)
  • Intel Pentium MMX-266 MHz CPU
  • 128MB SDRAM
  • 15G Hard Disk Drive
  • Built-in Audio & Video
  • Built-in GPS
  • 2 USB, 4 RS232 Serial, IRDA
  • 4 NTSC / PAL inputs
  • 2 PCMCIA slots support type 1, 2, 3
  • CD-ROM / DVD-ROM Drive




Specifications

  • Model #: CP-1000
  • Dimension:  Standard vehicle one-DIN
  • Operating Temperature:  0°F ~ 122°F
  • Power in: DC 10V ~ 26V / 4A
  • Weight:  5.73 lbs
  • Processor:  Intel low power MMX-266MHz
  • 512KB 2nd level pipeline burst cache
  • Intel triton II TX Chipset
  • Memory: 128 MB SDRAM
  • Video:  2MB on-board SDRAM
    Support up to 1600x1200 resolution
  • Audio:  ESS solo-1 3D Sound chip, with 2x1W audio Amplifier on board
  • Built-in GPS sensor
  • 2 type-II PCMCIA slots
  • 2 USB, 4 RS232 Serial, IDRA
  • 4 video inputs
  • Storage:  One 2.5 inch Hard Disk 9.5mm high
    (Support Ultra DMA 33/66)
  • One ATAPI interface
  • Mini-Din connector for PS/2 keyboard and PS/2 mouse

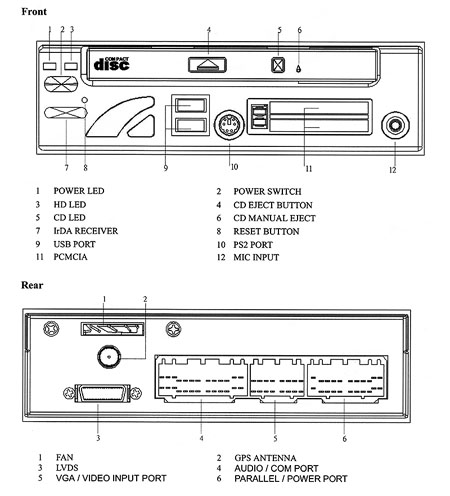

Diagram
