Panel Mount Bracket and Gasket for 1029 Series Rugged Monitors

Panel Mount Bracket and Gasket for 1029 series monitors
View detailed images (4)
PMB-1029 - Panel Mount Bracket for 1029 series monitors - Xenarc Technologies Touchscreen Accessories PMB-1029 - Panel Mount Bracket for 1029 series monitors - Xenarc Technologies Touchscreen Accessories PMB-1029 - Panel Mount Bracket for 1029 series monitors - Xenarc Technologies Touchscreen Accessories PMB-1029 - Panel Mount Bracket for 1029 series monitors - Xenarc Technologies Touchscreen Accessories
Model # PMB-1029
Description

Panel Mount Bracket for 1029 series for Panel Mount Industrial Monitors and Touch Screens.

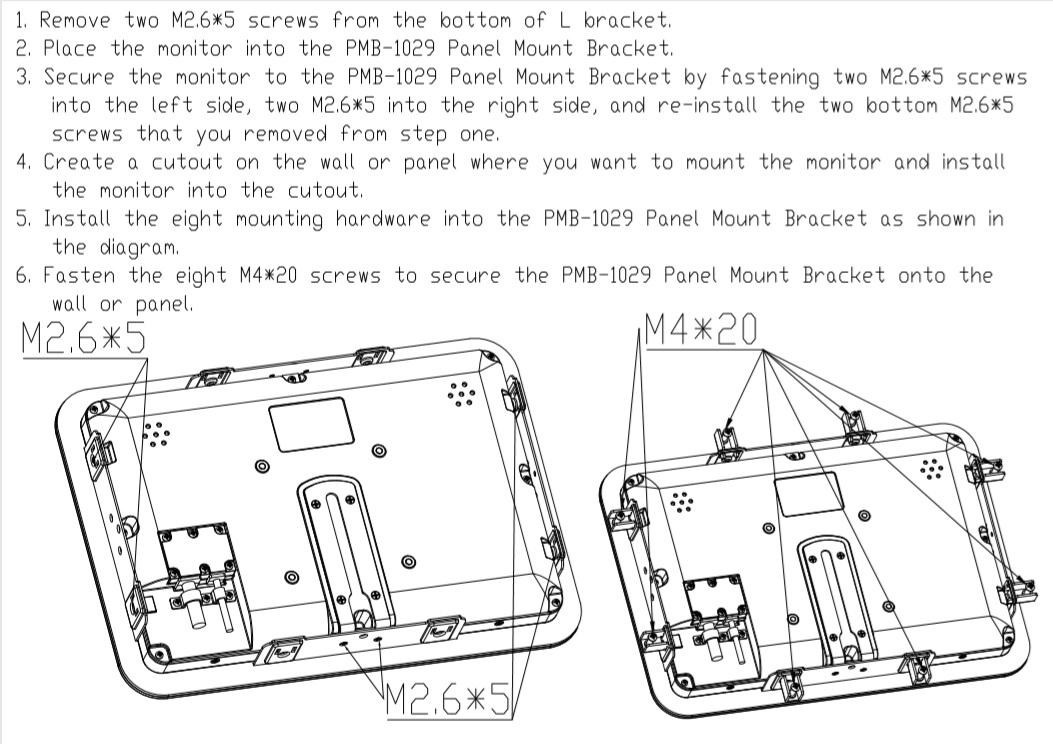

1.  Remove two M2.6*5 scres from the bottom of the L bracket. 2.  Place the monitor into the PMB-1029 Panel Mount Bracket. 3.  Secure teh monitor to the PMP-1029 Panel Mount Bracket by fastening two M2.6*5 screws into the left side, two M2.6*5 into the right side, and re-install the two bottom M2.6*5 screws that you removed from step one. 4.  Create a shortcut on the wall or panel where you want to mount the monitor and install the monitor into the cutout. 5.  Install the eight mounting hardware into the PMB-1029 Panel Mount Bracket as shown in the diagram below. 6.  Fasten the eight M4*20 screws to secure teh PMB-1029 Panel Mount Bracket onto the wall or panel.

Related Products:

1029GNH

1029CNH

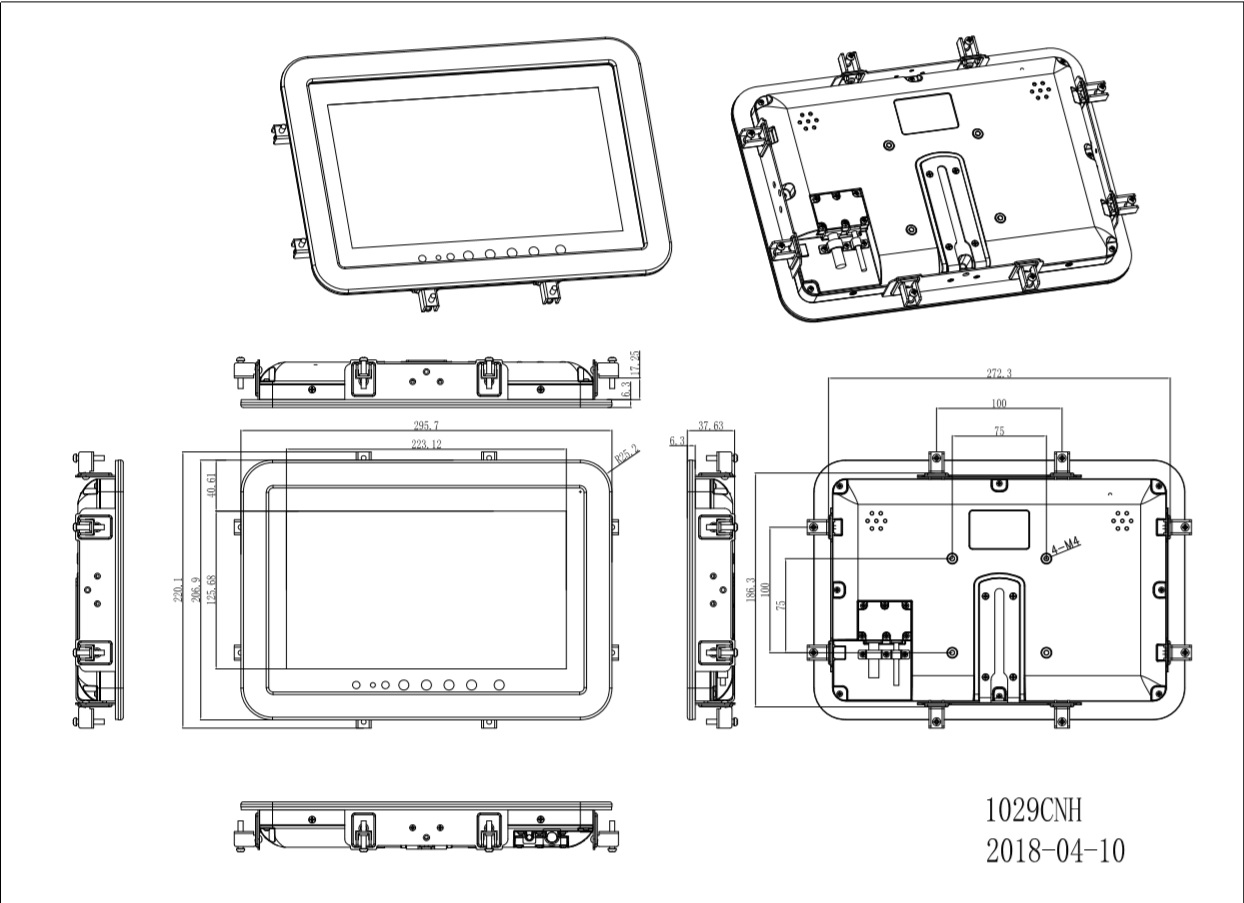

Function Diagram
Panel Mount Bracket and Gasket for 1029 series monitors
Package Contents
Panel Mount Brackets Panel Mount Gasket

Panel Mount Bracket for 1029 series for Panel Mount Industrial Monitors and Touch Screens.

1.  Remove two M2.6*5 scres from the bottom of the L bracket. 2.  Place the monitor into the PMB-1029 Panel Mount Bracket. 3.  Secure teh monitor to the PMP-1029 Panel Mount Bracket by fastening two M2.6*5 screws into the left side, two M2.6*5 into the right side, and re-install the two bottom M2.6*5 screws that you removed from step one. 4.  Create a shortcut on the wall or panel where you want to mount the monitor and install the monitor into the cutout. 5.  Install the eight mounting hardware into the PMB-1029 Panel Mount Bracket as shown in the diagram below. 6.  Fasten the eight M4*20 screws to secure teh PMB-1029 Panel Mount Bracket onto the wall or panel.
