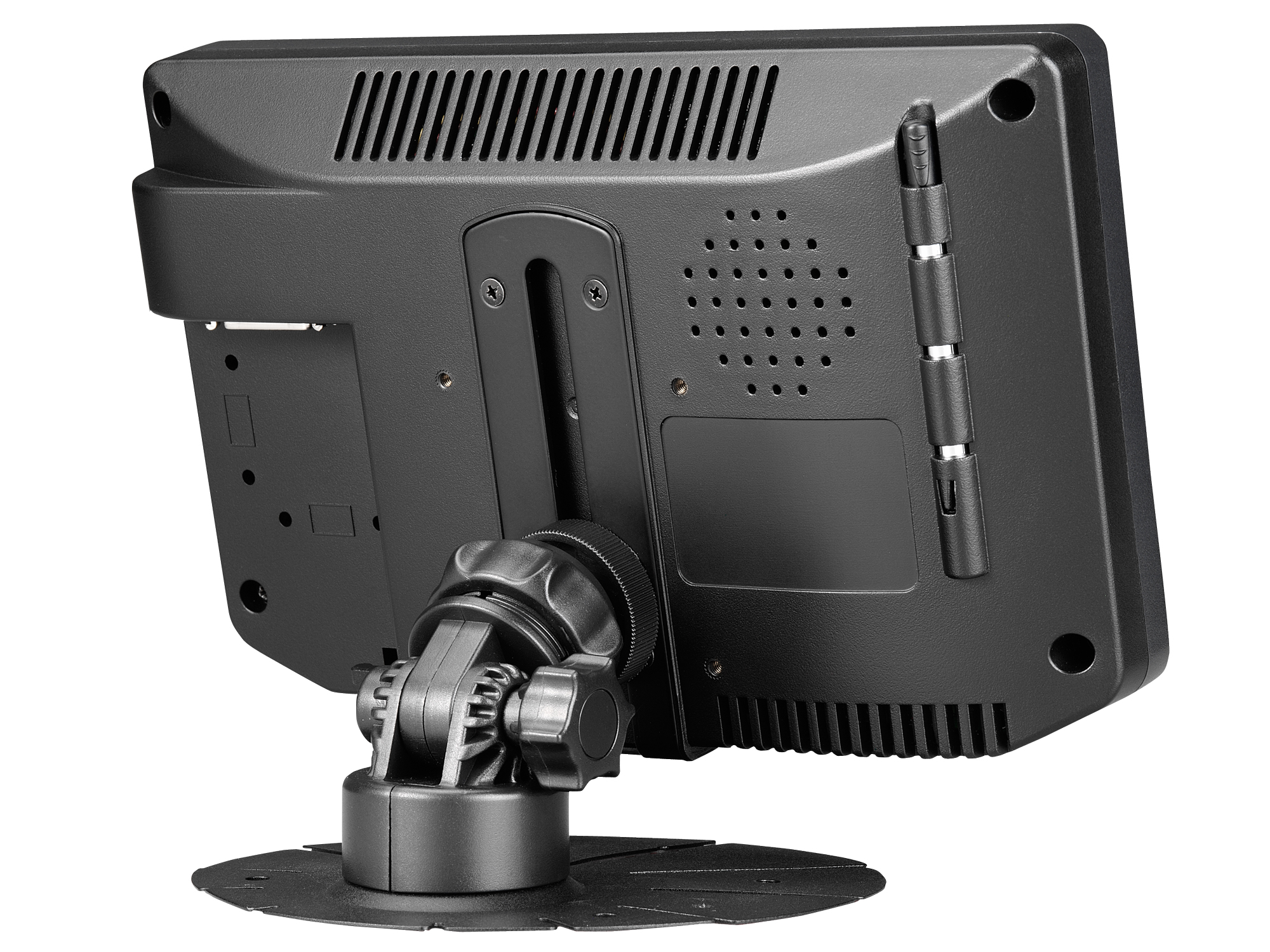

702GSH - Optically Bonded 7" High Bright Touchscreen Monitor with HDMI

Xenarc Technologies proudly announces the newest member of the All-weather Rugged 700 series line up, the 702GSH LCD Monitor.  Working in conjunction with clients who use our 7" displays in outdoor, direct sunlight bright environments, the 702GSH utilizes optical bonding to produce a display that performs perfectly in such environment.

Optical bonding is the process by which the air gap between the touch panel and the display panel is eliminated via the use of adhesive.  This increases the luminance and the contrast ratio of the display, thereby reducing the amount of reflected ambient light.  Optical bonding also has the following benefits:

• Increased clarity and viewability - Optical bonding eliminates the internal reflection between the display panel and the touch panel by creating a single index refraction. Reducing internally reflected light loss increases display contrast and viewability.
• Increased ruggedness
• Moisture and dust resistance - The process of optical bonding fills the gap between the touchscreen glass and the display panel, which prevents condensation or dust from affecting the displays clarity.
• Higher shock and vibration resistance - Optical bonding is an effective means of improving shake and shock resistance, which is particularly helpful in military, industrial, and transportation applications.

What applications can benefit from optical bonding?  Any LCD Moitor display in an outdoor environment, or an industrial application with vibration and environmental elements, or high ambient light conditions;  these can all be improved with optical bonding.  From in-vehicle displays to digital signage, marine to in-flight, industrial and medical, optical bonding increases the usability of a display in all of these applications.

Other features that makes the 702GSH 7" Rugged Monitor:

      ♦ Advanced Capacitive touch panel

      ♦ HDMI Video Input

      ♦ VGA Video Input

      ♦ DVI Video Input

      ♦ 1000 NIT High Bright

      ♦ Contrast Ratio to 700:1

      ♦ Operating Voltage Range: DC 10V ~ 35V

      ♦ Power Supply: DC 12V

      ♦ Power Consumption:  < 10W

      ♦ Operating Temperature:  -4°F ~ 158°F (-20°C ~ 70°C)

      ♦ Storage Temperature:  -22°F ~ 176°F (-30°C ~ 80°C)

      ♦ IK08 Impact Protection

      ♦ 3 Year Manufacturer's Warranty + No Dead Pixel Guarantee

      ♦ MTBF (Mean Time Between Failures): > 55,000 Hours or > 6.2 Years of continuous operation

Please contact your Xenarc Technologies sales representative for further information on this exciting new model.  The 702GSH will be available for sale in late May 2017.

2017 Product Pricing
Xenarc Technologies has also just released its new pricing for all Rugged All-Weather Monitors for 2017.  With new products coming in, and price drops across the board, please contact your Xenarc Technologies' sales representative for a current pricelist, or email us at sales@xenarc.com.

 By utilizing high grade components, this display is perfect for industrial and in-vehicle applications or any other applications where a small, durable, environmentally rugged display is required, including but not limited to:

• Transportation - Marine, Air, Heavy Vehicles, Mining, Weigh Stations, Fleet Management, Telematics, In-Car Computing, Public Transit, Cargo
• System Integration - Machinery Controls, Factory Automation, Environmental Monitoring, Home Automation, Military, Smart Home
• Point of Sale - Hospitality, Digital Signage, Self-Service Kiosks, Outdoor Kiosks and Signage, Casino
• Data Monitoring - Cloud, IoT, Medical, Logistics, Inventory Management, Oil & Gas/Utilities, Law Enforcement, Broadcasting, Veterinary, First Person View
• Broadcast & Production - Broadcast Stations, Mobile Production Vehicles, Field Rugged Deployment for your mobile workforce, Studio Video Production

Engineers and Automators love the ruggedness and the toughness of a Xenarc Monitor especially for critical operations where no down time is allowed or can be risked.  Premium Panel Technology by Xenarc Technology for those in critical industries Deliver:

♦ Wider Viewing Angles
♦ Higher Contrast Ratios
♦ Better Color Accuracy
♦ Better Visual Clarity
♦ No Image Distortion
♦ No color Shifting
♦ Improves viewing comfort
♦ Improves overall User Experience

Xenarc Rugged Touchscreen Monitors 7" to 18" are built tough to last.  The Mean Rate Between Failure (MRBF) for a Xenarc Technologies Rugged Monitor is > 55,000 hours OR 6.2 Years of continuous operation and with the new 3 Year Warranty, a Xenarc Rugged Monitor gives you truly peace of mind.

Xenarc Technologies All-Weather Rugged 7" to 18" Monitors are perfect Human Machine Interface for Smart Homes, Smart Factories, Smart Offices, Smart Vehicles, Smart Stores, Smart Cities.  IIoT, IoT, Industry 4.0 and for low voltage and indoor or outdoor applications.
